#839215
LW Scientific #I4M-TN4A-IPL3

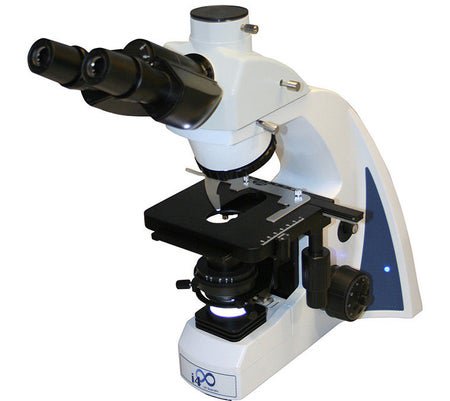

i4 Series Microscope Siedentopf Type Trinocular Head Infinity Plan 4X, 10X, 40X, 100X 100 to 240V, 50/60Hz Mechanical Stage

MICROSCOPE, TRINOCULAR I-4 INFINITY 4OBJECT LED

i4 Series Microscope Siedentopf Type Trinocular Head Infinity Plan 4X, 10X, 40X, 100X 100 to 240V, 50/60Hz Mechanical Stage

i4 Series Microscope Siedentopf Type Trinocular Head Infinity Plan 4X, 10X, 40X, 100X 100 to 240V, 50/60Hz Mechanical Stage

i4 Series Microscope Siedentopf Type Trinocular Head Infinity Plan 4X, 10X, 40X, 100X 100 to 240V, 50/60Hz Mechanical Stage

i4 Series Microscope Siedentopf Type Trinocular Head Infinity Plan 4X, 10X, 40X, 100X 100 to 240V, 50/60Hz Mechanical Stage

Product Specifications

McKesson #

839215

Manufacturer #

I4M-TN4A-IPL3

Brand

i4 Series

Manufacturer

LW Scientific

Country of Origin

Unknown

Application

Microscope

Buy American Act (BAA) Compliant

No

Condenser

N.A. 1.25 Abbe Condenser with Iris Diaphragm

Dimensions

6.1 X 10.7 X 14.1 Inch

Head Type

Siedentopf Type Trinocular Head

Light Type

LED

Objectives

Infinity Plan 4X, 10X, 40X, 100X

Power Source

100 to 240V, 50/60Hz

Stage Type

Mechanical Stage

Trade Agreement Act (TAA) Compliant

No

UNSPSC Code

41111759

Features

Diopter adjustment, inclined 30° , rotates 360° , 10X/18 WF eyepieces
Reverse quadruple nosepiece
Multiple ball bearing mounted
Anti-fungal, parfocal, parcentric, color-coded objectives
Coaxial drive controls, metal rack and pinion
50 X 78 mm Range of traverse
Stage locking lever, slow-close hydraulic slide finger
Range of 30 mm coarse adjustment, graduation of 2 μm fine adjustment, tension control knob
Medical-grade microscope
Anti-fungal coating on all lenses
LED daylight long life illumination
