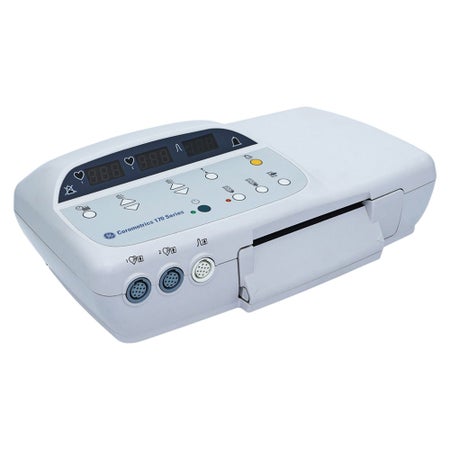

Refurbished Fetal Monitor Corometrics® 172 Series FECG Mode: Peak Detecting, Beat-to-Beat Cardio tachometer, 30 to 240 bpm Heart Rate, ±1 bpm resolution; Ultrasound Mode: Pulsed Doppler with Autocorrelation Processing, 9-Crystal Transducer, 2 kHz Frequency; Uterine Activity Mode: Strain Gauge: 0 to 100 mmHg, 1 mmHg Resolution; Tocotransducer: 0 to 100 Relative Units, 1 Relative Unit Resolution

Features

• Refurbished in an ISO 13485 Certified FDA registered Facility
• Technique pulsed doppler with auto correlation processing
• 9-Crystal Transducer
• 2 kHz (all modes) Pulse repetition frequency
• 92 µs Pulse duration
• 1.151 MHz Transmitter frequency
• <5 m w/cm2 Spatial-average temporal isata, average intensity
• Focal 20 dB beam area 16.6 cm2, at a range = 7 cm
• 1.8 m w/cm2 Peak instantaneous intensity
• 50-210 BPM Heart rate counting range
• Leakage current: Complies with IEC 601.1 and/or IEC 601.1.1 harmonized national standard
• Single 9-crystal nautilus watertight, ultrasound transducers, fetal heart-rate alarm, heart rate offset mode, heart beat coincidence, nautilus watertight toco transducer, remote event marker, centricity qs interface, 340m telemetry interface, fetal acoustic stimulator, fetal movement detection algorithm
