• #1012020
  • Joerns Healthcare #HPL500-SCALE-IL

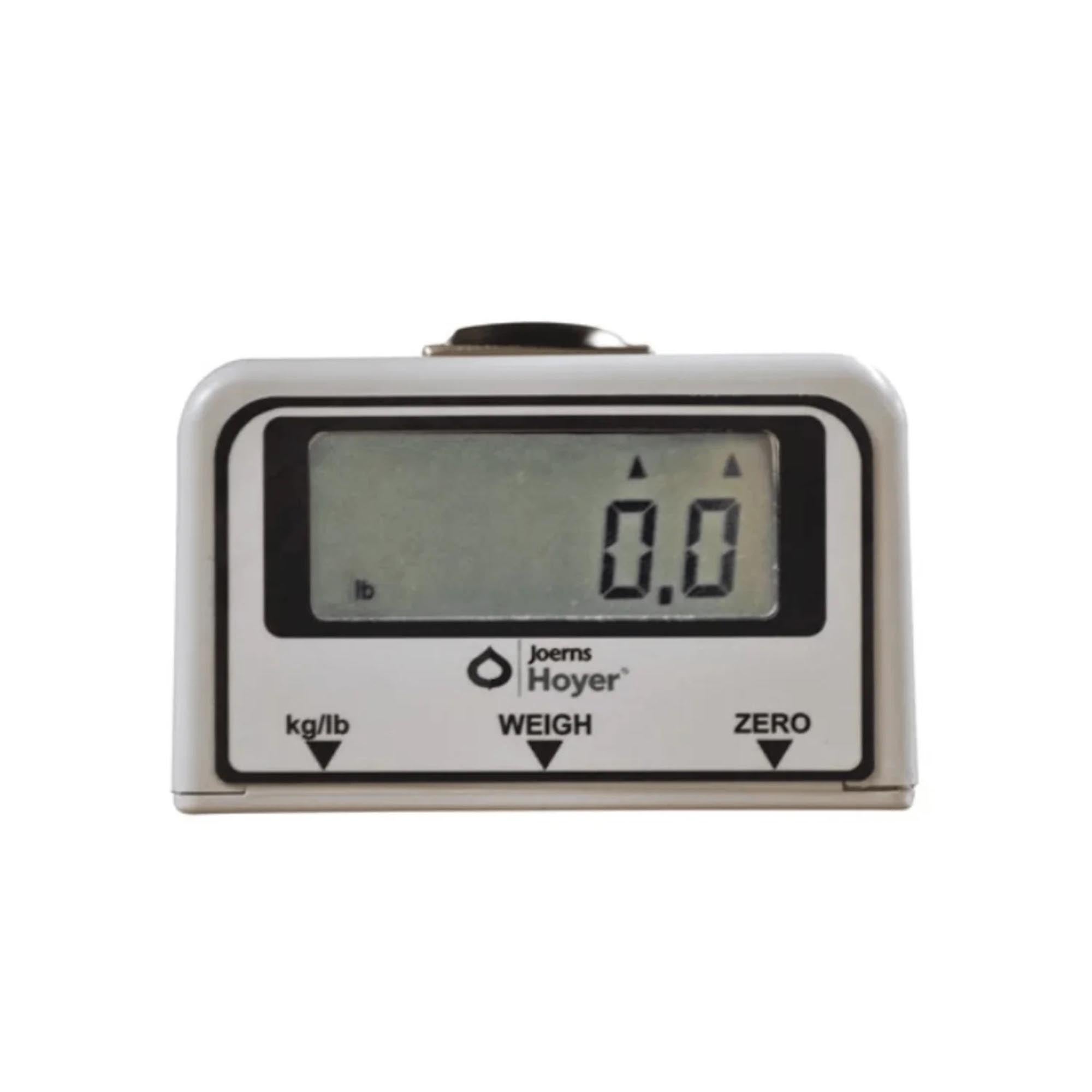

Patient Lift Scale Hoyer® Digital Remote Display 500 lbs. AC Adapter

SCALE, PT F/HOYER RESIDENT LIFT D/S

Features
  • Outstanding effective lifting range (ELR) of 20 to 76 Inch
  • Smart monitor technology drives user compliance and lift longevity
  • Available in powered base or foot-operated manual base
  • More …
  Log In to Order
or

Professionals Also Viewed


Product Specifications


McKesson #1012020
Manufacturer #HPL500-SCALE-IL
BrandHoyer®
ManufacturerJoerns Healthcare
Country of OriginMexico
ApplicationPatient Lift Scale
Capacity500 lbs.
Display TypeDigital Remote Display
Overall Dimensions54-1/5 X 83 Inch
Platform TypeLift
Power SupplyAC Adapter
UNSPSC Code42192307
Features
  • Outstanding effective lifting range (ELR) of 20 to 76 Inch
  • Smart monitor technology drives user compliance and lift longevity
  • Available in powered base or foot-operated manual base
  • Large lifting capacity: 500 lbs. safe working load
  • Legs open inside dimension 44.9 Inch
  • Legs closed outside dimension 27.4 Inch
  • Overall height of legs 4 Inch
  • Base options - powered or foot pedal
  • Tested to EN ISO 10535, the global standard for patient lifts
  • Height at maximum reach 48.5 Inch
  • 16.9 to 17.7 Inch Reach at height
  • Turning radius: 52.1 Inch
  • Battery – 24 VDC rechargeable sealed lead acid type
  • Battery capacity 2.9 A hr
  • Charger rated input 100-240 V AC / 50 /60 Hz
  • Charger rated output 29.5 VDC, Max. 19 W / IPX5
